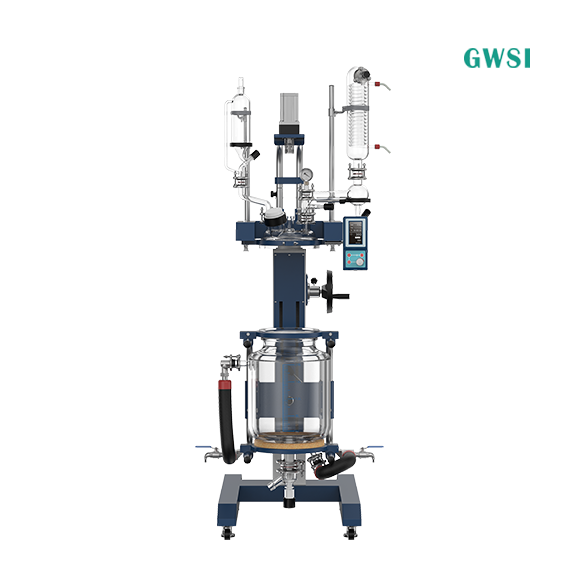

Lifting Glass Reactor GRL Series CE

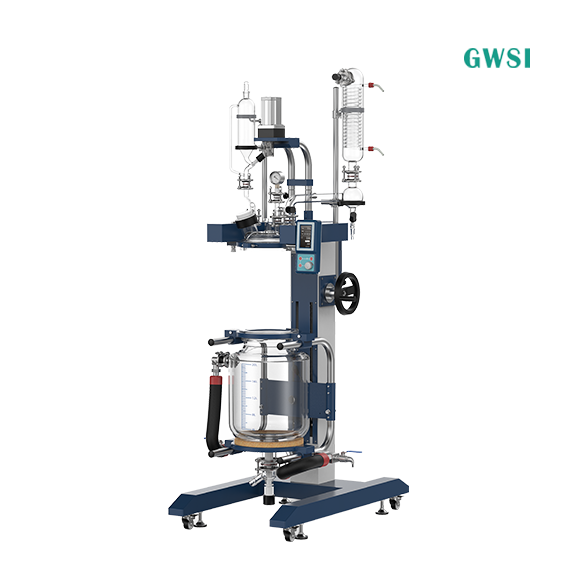

  • The reaction vessel and the lid can be separated, the glass vessel can be lifted up, and can be angled 120 degree both sides, which makes it more convenient to operate and clean.
  • 4.3”, 65K true color LCD screen operation box, the torque value, temperature, running time, setting speed and actual speed can be displayed simultaneously.
  • "工" shape stainless steel frame is much more stable than standard type during mixing process.
  • Wide working temperature range from -80℃ to 200℃.
  • Openings are sealed with flanges, ensuring higher vacuum degree, easy to disassemble.
  • p03 s01 ce icon

Product Specifications

Vessel capacity10L20L30L50L
Jacket capacity8L9L10L13L
Condensing area0.245㎡0.245㎡0.245㎡0.42㎡
Glass materialHigh borosilicate glass
Stirring speed20-500rpm
Power Supply100—240V~, 50/60Hz
Diameter of circulating fluid inlet and outletRc 3/4″
Bearable temperature difference60℃(Triple wall), 80℃(Double wall)
Working temperature range-80~200℃
Ambient temperature5-35℃
Relative humidity≤70%
Operating pressureOrdinary pressure or negative pressure
Jacket pressure≤0.03MPa
Lifting distance400mm
Max.drain port ground clearance580mm530mm620mm570mm
Dimensions850W*1100D*2050H mm850W*1100D*2050H mm860W*1100D*2050H mm860W*1100D*2050H mm
